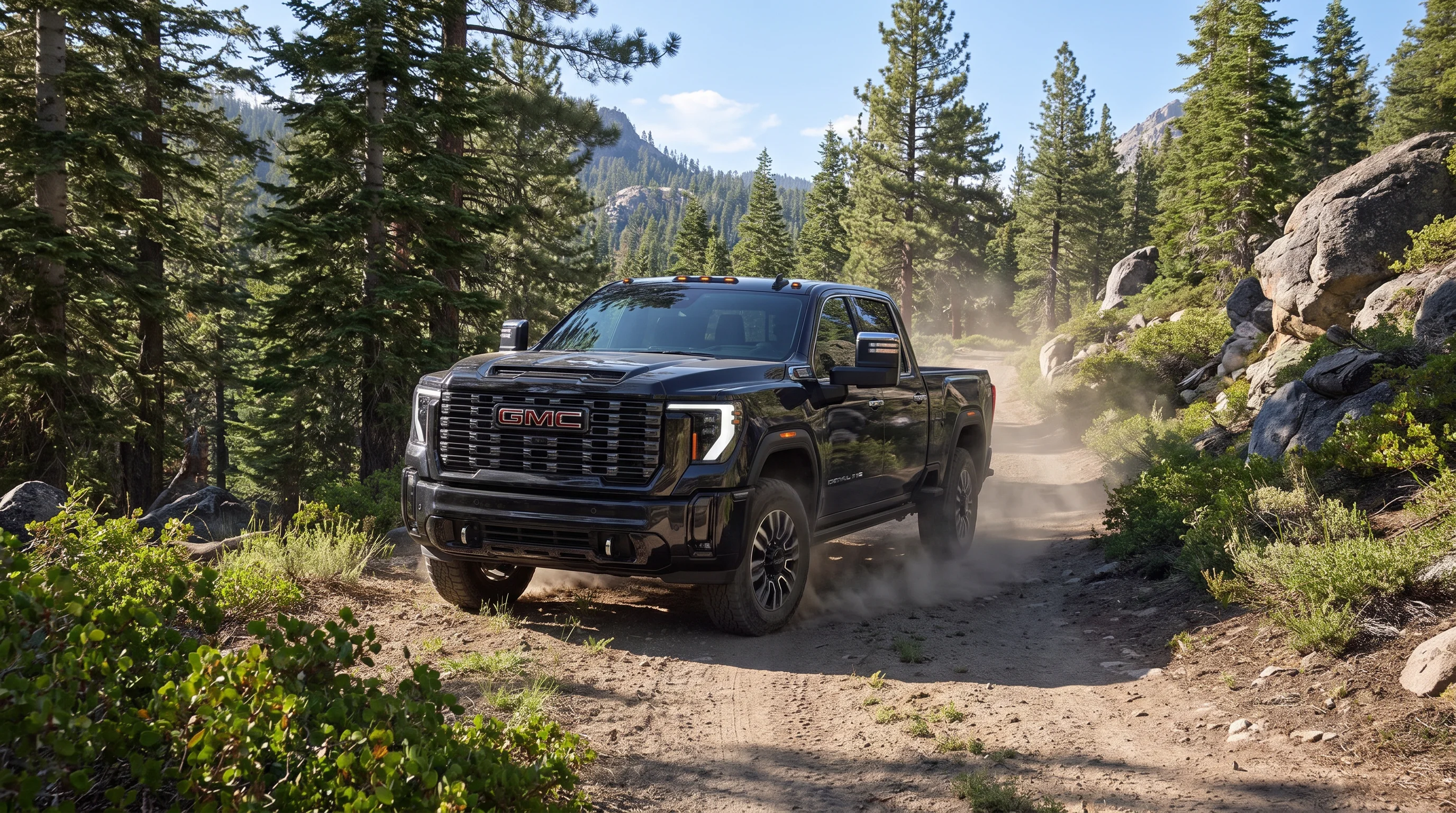

2026 GMC Sierra 2500HD: Ranching and Hauling Capability in Ellis County
Is the 2026 Sierra 2500HD durable enough for daily livestock and equipment hauling?
The 2026 GMC Sierra 2500HD is built for daily livestock and equipment hauling. It combines a fully boxed high-strength steel frame with an Eaton automatic locking rear differential and available 4WD. Ground clearance runs 10.1 inches on Crew Cab models and 10.2 inches on Double Cab models. A heavy-duty Allison 10-speed automatic transmission backs both engines, and payload reaches up to 4,049 pounds. That is enough capacity for stock trailers, hay bales, and heavy machinery across unpaved pastures and ranch roads.
Built to Handle Sustained Load
Daily agricultural work demands structural integrity under load. The boxed frame uses high-strength steel to resist chassis twist. That matters most when you are pulling a heavy gooseneck trailer over uneven ground.
Standard DuraLife brake rotors use a Ferritic Nitro-Carburizing process. GMC states the process can double rotor life expectancy while reducing surface rust. Trucks built with the Duramax diesel also add heavy-duty dual batteries rated at 730 cold-cranking amps each, which helps on cold early-morning starts. Models outfitted with the X31 Off-Road Package add twin-tube Rancho shocks, underbody skid plates, and Hill Descent Control.
Capacity for Ellis County Loads
On the agricultural outskirts of Waxahachie, operators cross unpaved pastures and property lines every day. Cattle and hay are among the county’s largest agricultural sectors, according to Texas A&M AgriLife Extension’s September 2025 report on the economic contribution of production agriculture in Ellis County, which draws on 2024 figures. The Sierra 2500HD carries a Gross Vehicle Weight Rating up to 11,350 pounds, the ceiling for the truck plus everything loaded into it. Payload of up to 4,049 pounds is the figure that governs how much feed, fencing wire, and livestock a crew can legally carry. For a full walkthrough of the lineup, see our 2026 GMC Sierra 2500HD overview.
What is the conventional towing capacity vs gooseneck towing for the 2026 GMC Sierra 2500HD?
The 2026 GMC Sierra 2500HD reaches a maximum conventional towing capacity of up to 20,000 pounds. With a fifth-wheel or gooseneck setup, the maximum available rating climbs to 22,390 pounds when properly equipped. Choosing between the two comes down to tongue weight placement, frame stress, and how the trailer needs to maneuver.
Verified Capability Figures
| Capability Rating | Maximum Figure | Configuration Required |
|---|---|---|
| Conventional towing | 20,000 lbs | Crew Cab with Duramax diesel and Max Trailering Package |
| Fifth-wheel towing | 22,390 lbs | Regular Cab long bed 2WD diesel with Max Trailering Package |
| Payload | 4,049 lbs | Regular Cab; varies by cab, bed, and axle configuration |
| Gross Vehicle Weight Rating | 11,350 lbs | Crew Cab with Duramax diesel; varies by configuration |
| Ground clearance | 10.1–10.2 in | Double Cab and Crew Cab models |
Maximum towing and payload capacity figures are based on properly equipped vehicles and vary by configuration. Do not exceed any weight rating. See your owner’s manual and the vehicle’s door-jamb label for specific capacities.
Specifications, features, and availability for the 2026 GMC Sierra 2500HD are preliminary and subject to change. Figures in this article are sourced from GMC (gmc.com) and were current as of publication. Confirm details for a specific vehicle with Legacy GMC of Waxahachie.
Each maximum above belongs to a specific build. No single truck carries all five at once, so confirm the numbers on the window sticker for the exact configuration you are considering.
Conventional Towing
Conventional towing uses a frame-mounted receiver hitch at the rear bumper. The standard 6.6-liter gas V8 handles the majority of everyday ranch trailering. The available Duramax 6.6-liter turbo-diesel V8 is what unlocks the full 20,000-pound conventional rating, and that figure requires the diesel plus the Max Trailering Package.
Gooseneck and Fifth-Wheel Towing
Gooseneck trailering attaches over the rear axle inside the truck bed. Trucks ordered with the available factory Gooseneck/Fifth-Wheel Prep Package come ready for it. Placing the hitch ball above the axle transfers tongue weight directly onto the heavy-duty rear suspension. That reduces rear-end sag and improves steering stability when hauling multi-head stock trailers. Gooseneck ratings run slightly below the fifth-wheel figures in the same configuration.
Trailering Technology
Technology takes some of the guesswork out of high-capacity trailering.
| Trailering Feature | What It Does |
|---|---|
| In-Vehicle Trailering App | Runs pre-departure checklists, trailer electrical diagnostics, and maintenance reminders |
| Trailer Tire Pressure Monitoring | Reports trailer tire pressure alongside the truck’s own readings |
| Camera views (up to 14 available) | Covers the truck and an attached trailer from multiple angles |
| Bed View Camera | Shows the bed on the display so you can line up a gooseneck ball solo |
| Transparent Trailer View | Renders a view past an attached trailer to reduce blind spots |
Which 2026 Sierra 2500HD engine specs matter most for ranch towing and fuel use?
Torque and low-RPM power delivery determine towing performance. Both engines pair exclusively with a heavy-duty Allison 10-speed automatic transmission. That transmission keeps each engine in its useful power band under load.
Gas V8 vs Duramax Turbo-Diesel
6.6L Gas V8 (Standard)
- Horsepower: 401 hp at 5,200 rpm
- Torque: 464 lb-ft at 4,000 rpm
- Transmission: Allison 10-speed automatic
- Towing role: Handles the majority of everyday ranch trailering
Duramax 6.6L Turbo-Diesel V8 (Available)
- Horsepower: 470 hp at 2,800 rpm
- Torque: 975 lb-ft at 1,600 rpm
- Transmission: Allison 10-speed automatic
- Towing role: Unlocks the maximum conventional and gooseneck ratings
Why Low-End Torque Matters on a Ranch
For operations pulling equipment trailers between work sites near Midlothian, low-end torque makes a real difference. The Duramax reaches its peak 975 lb-ft at 1,600 rpm. That lets the truck bring a loaded stock trailer up to highway speed without hunting for gears.
An integrated smart exhaust brake helps on the way back down. It uses the variable-geometry turbocharger’s movable vanes to restrict exhaust flow. The resulting backpressure slows the vehicle on downhill grades and reduces wear on the service brakes.
Why There Is No EPA Fuel Economy Rating
Here is something worth knowing before you compare fuel numbers. Pickups rated above 8,500 pounds gross vehicle weight are classified as heavy-duty, and the federal government does not test them for fuel economy. No official EPA-estimated mileage figures exist for the Sierra 2500HD with either engine.
What you can compare is behavior under load. Gasoline engines need higher RPM and more fuel to hold momentum with weight behind them. Diesel engines maintain thermal efficiency under sustained drag. That is why agricultural and commercial fleets that cover long distances tend toward the Duramax.
A closer look at both powertrains is available on our 2026 Sierra 2500 HD engine options page.
What bed lengths, bed configurations, and MultiPro Tailgate positions does the 2026 Sierra 2500HD offer?
The 2026 GMC Sierra 2500HD offers two bed configurations. The choice affects both cargo capacity and how the truck maneuvers around a working property.
Bed Configurations
Standard Bed
- Bed length: 6 feet 9 inches
- Cargo volume: 69.5 cubic feet
Long Bed
- Bed length: 8 feet
- Cargo volume: 83.5 cubic feet
Bed Features Built for Work
The roll-formed high-strength steel bed is built for severe-duty use. Standard features include a CornerStep rear bumper and side bed steps forward of the rear wheels. The bed also carries 12 fixed cargo tie-downs rated at 500 pounds per corner.
An available 120-volt bed-mounted power outlet runs electric tools in the field. An available factory spray-on bedliner seals the steel bed against moisture, rust, and impact damage.
The Six Positions of the Available MultiPro Tailgate
Primary Gate
Opens by key fob, interior switch, or gate button.
Primary Gate Load Stop
Flips up to keep long cargo from sliding off.
Easy Access
The inner gate folds down so you can reach farther into the bed.
Full-Width Step
The inner gate folds into a 48-inch step rated for 375 pounds, with a fold-out grab handle.
Inner Gate Load Stop
Secures upper-tier cargo in a two-tier load.
Inner Gate With Work Surface
Folds flat into a chest-height workbench.
How does the 2026 Sierra 2500HD trim lineup match different ranch and commercial jobs?
The 2026 Sierra 2500HD comes in seven trims. The right one depends less on the badge than on what the truck does Monday through Friday.
Core mechanicals carry across the range. An Eaton automatic locking rear differential senses a wheel-speed difference of roughly 100 rpm. It then locks both rear wheels in unison to hold momentum in mud or loose gravel.
Trim Lineup at a Glance
| Trim | Built For | Key Equipment |
|---|---|---|
| Pro | Fleet and work-truck duty | Vinyl upholstery, Trailering Package, trailering mirrors, trailer brake controller |
| SLE | Work duty with modern cabin tech | 13.4-inch center touchscreen, 12.3-inch driver information center, Traction Select with Tow/Haul mode, available X31 Off-Road Package |
| SLT | Heavy trailering with added comfort | ProGrade Trailering System with In-Vehicle Trailering App, heated power front seats, heated steering wheel |
| AT4 | Everyday off-road and unpaved property work | Off-Road Suspension Package with twin-tube Rancho shocks and skid plates, up to 14 camera views, Adaptive Cruise Control with trailering |
| AT4X | Serious off-road capability | Factory 1.5-inch suspension lift, Multimatic DSSV dampers, rear electronic locking differential, 35-inch tires, 16-way power front seats with massage |
| Denali | Heavy-duty capability with luxury appointments | Denali-exclusive authentic wood, patterned aluminum trim, Forge perforated leather seating, 12-way heated and ventilated power front seats |
| Denali Ultimate | Top-of-lineup luxury and standard diesel power | Standard Duramax diesel, Alpine Umber full-grain leather with authentic Paldao wood, 16-way power front seats with massage, 12-speaker Bose Premium Series audio |
Commercial and Upfit Options
For commercial and upfit work, the Sierra 2500HD supports dual alternators and a Snow Plow Prep/Camper Package. It also offers the Gooseneck/Fifth-Wheel Prep Package and upfitter auxiliary switches, which let the driver operate installed equipment from inside the cab. Trim-by-trim detail is on our 2026 Sierra 2500 HD trims and pricing page.
Common Questions About 2026 GMC Sierra 2500HD Ranching Performance
Does the 2026 Sierra 2500HD require extra equipment for gooseneck hitch installation?
Models equipped with the factory Gooseneck/Fifth-Wheel Prep Package include a hitch platform with a tray to accept the ball, stamped bed holes with removable caps installed, and a bed-mounted 7-pin trailer harness. Installing a gooseneck means adding a compatible ball and safety chain anchors to the factory bed mounts, which eliminates aftermarket welding or drilling under the bed.
What is the benefit of the integrated exhaust brake on Duramax diesel models?
The integrated smart exhaust brake uses the variable-geometry turbocharger’s movable vanes to restrict exhaust airflow, creating backpressure that slows the engine and vehicle. This engine braking action controls downhill speeds when pulling heavy livestock or equipment trailers, reduces strain on the service brakes, and helps prevent thermal brake fade.
How does the Crew Cab interior space compare when hauling a full ranch crew?
Crew Cab models of the 2026 GMC Sierra 2500HD offer front headroom of 43.0 inches and front legroom of 44.5 inches. The rear area provides room for three adult workers, along with a 60/40-split fold-up rear bench and under-seat storage for carrying gear inside the climate-controlled cabin.
Can Adaptive Cruise Control be used while towing a heavy stock trailer?
Yes. Adaptive Cruise Control with trailering is available on the 2026 Sierra 2500HD, and it accounts for the additional drag and increased braking distances that come with a trailer. The following gap is chosen by the driver, so selecting a longer gap when hauling heavy allows steadier highway cruising without constant pedal correction.
Safety or driver assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. Read the vehicle Owner’s Manual for important feature limitations and information.
